The following is the standard
wireless barn camera system that we have sold for almost 20 years
with modernized equipment added along the way. It's simple to
install as every connection is completely color coded and everything
is included but the TV. It will connect to your TV and/or a
DVR in your home. It can be purchased as a single camera unit
and eaisly upgraded to multiple cameras at anytime.
About the Transmitter / Receiver (distances)
Our 2.4 Ghz transmitter receiver kits have
two signal strength ratings. 1000 feet line of sight (standard) and
2000 feet plus (Extended Upgrade) We recommend keeping distances
under 500 feet (Standard) and 2000 to 3000 feet (Extended). Both
are weatherproof although most people place the receiver inside the
home near the TV or DVR. If you have a brick home, you may need to
place the receiver in a windowsill or outside your home. The
receiver typically is placed outside on the barn to avoid metal barn
walls. If your distance is past 3000 feet and you have line of
sight, give us a call and we'll discuss your options. Our 2.4
kits are digital so they don't get the interference associated with
wireless video in the past.
If you're unsure of your distance, we
recommend visiting and downloading Google earth. The program is free
and contains a button on the toolbar which will allow you to measure
from your house to your barn off of the satellite image. It is very

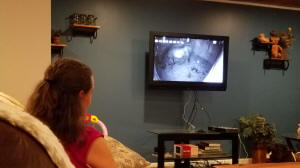

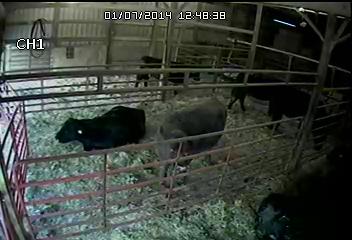

Captured from customer's smartphone video feed.

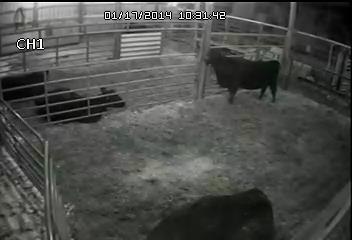

Captured from customer's smartphone video feed.
For many more customer use photo's and reviews. Visit
Riverwind's Facebook page with this link. You do not have to
be a member to see the images, videos or reviews.
About The Camera
Riverwind's cameras are choosen and
adapted to funtion with our wireless equipment in the toughest
enviornments. From the extreme heat of the southwest to the
frigid northern states, Riverwind has been placing cameras in
barns for 20 years. We bulk buy only the best cameras and if
something happens, advance replacement is provided.
Following the one year warranty, replacement equipment is supplied
at cost. Presently, Riverwind is using Eclipse cameras along
with a 720p/1000 tvl TVI cameras for our wireless systems.
Our standard camera has a 3.6 mm lens
that provides a 90 degree field of view. Vari-focal 2.8 to 12mm
lens are available. Cameras are all color infrared allowing you to
view in a variety of lighting conditions.
Power and Cable
The system ships standard with 60 feet of cable
(camera inside to transmitter outside). This may be increased up to 100
feet for $10. Additional lengths can be achieved, give us a
call. The 12 volt DC system is operated off two small
AC adapters into a normal 110 outlet (similar to cell phone
charger). The power may be provided on the camera end of the
50 foot cable or the transmitter end, you do not need electric on
both ends.. The directions indicate how to change to power location
Viewing on your Smartphone and Computer
Our Wireless Barn Camera System connects to
your TV provideing constant live video. You may stream this
same video to your smartphone, tablet or PC by adding a DVR.
The DVR is placed in the house connected to one of the receiver's
two outputs. The DVR is then physically connected to your
Router with network/Ethernet cable. The system will not work
off Aircards or Hotspots although a system that will function with
these devices is in the future so check back. This will be
deleted when that is possible. Some satalite providers block a
process needed to stream the video when away from home. If you
have satalite, please call. Riverwind includes remote in setup
with the DVR. We remote into your PC while you watch and set
the equipment and router settings up. When we hang up, you
will be watching it on your phone. Riverwind also offers high
defenition home network systems. These systems are competely
independant from the system listed on this page. For more
information please see our High Def
Wireless Network Systems page.
Completely color coded connections and easy directions for
Transmitter may be positioned to avoid barriers.
Weatherproof camera available for other uses (barn lot in the summer
Additional cameras can be added. You only pay the
difference. A piece at a time is the same price as all at
once aside from shipping cost.
Add a DVR (now or later) and upload to your smartphone and
Weatherproof transmitter and receiver (should you need to
place the receiver outside)
Safe 12 Volt operating system (AC adapters included)
The effective working range of this system is 400 to 500 feet
for indoor placement of receiver, 1000 feet for exterior
placement of receiver with.
Upgrade to Extended Range Wireless
Increase your system to a 9dbi transmitter and
receiver. This will provide effective video out to 2000 feet
line of sight. Further distances are possible, if this is the
case, give us a to discuss your distance needs.
Cable Upgrades (camera to transmitter location at barn)
cable to 100 feet (camera to transmitter)
Increase cable beyond 100 feet
Monitor on your
Smart-Phone or Computer
Max-Plex DVR for uploading to your smart phone or computer
DVR's must be connected to your router, they will not operate
across Wi-Fi. Some Satellite internet providers block a process
called port forwarding. Your service must allow this.
remotely assist you in setting up the DVR, but we/you must have access to
your router's admin functions, IThe DVR will not work with an aircard or hotspot.
They will work with 4G routers although some providers will charge
you a high setup fee as they need a static address. Static
address are not required for normal routers as the DVR has a ddns
feature within it. If in doubt, call.
If in doubt, please call.
This includes $50 for remote in tech setup. If not needed, you
may deduct this amount but you will need to call to order.
